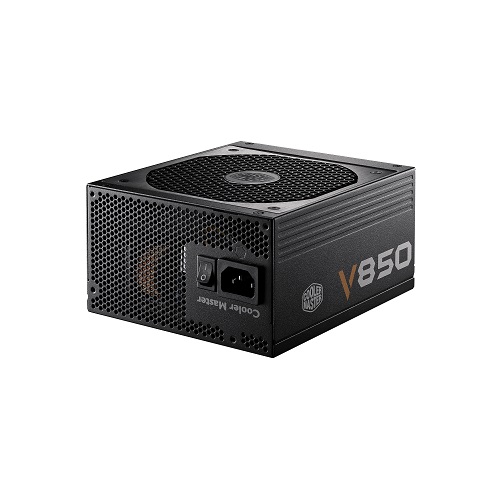

Model - MPY-8501-AFAAGV
ATX Version - ATX 12V
PFC - Active PFC
Input Voltage - 100-240V
Input Current - 13-6A
Input Frequency - 50-60Hz
Dimensions (L x W x H) - 160 x 150 x 86 mm
Fan Size - 135mm
Fan Bearing - FDB
Fan Speed - 1545 RPM
Noise Level @ 20% - 0 dBA
Noise Level @ 50% - 15.4 dBA
Noise Level @ 100% - 32.5 dBA
Efficiency - 90% @ Typical Load
80 PLUS Rating - 80 PLUS Gold
ErP 2014 Lot 3 - Yes
Operating Temperature - 0-50°C
Power Good Signal - 100-500ms
Hold Up Time - 17ms
MTBF - >100,000 Hours
Protections - OVP, OPP, SCP, OCP, UVP, OTP
Regulatory - CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24-Pin Connectors - 1
EPS 4+4 Pin Connectors - 1
EPS 8 Pin Connector - 1
SATA Connectors - 12
Peripheral 4-Pin Connectors - 4
FDD Connector - 1
Modular - Full Modular
Wattage - Above 750W
80 Plus - Gold
Serie - V Gold Series
